Form 2 Desktop 3D printer

The Form 2 Desktop 3D printer is able to deliver large prints with incredible resolution. The method used by the majority of 3D printers, fused deposition modeling (FDM), first melts the plastic, then uses a nozzle extruder to print each layer with the molten plastic. The stereolithography (SLA) technology used by the Form 2 directs a 250mW precision laser across a tray of liquid resin causing a thin layer to solidify. This chemical reaction allows for the creation of water-tight prints and is why SLA is the gold standard for accuracy and resolution in 3D printing.

Examples of Prints

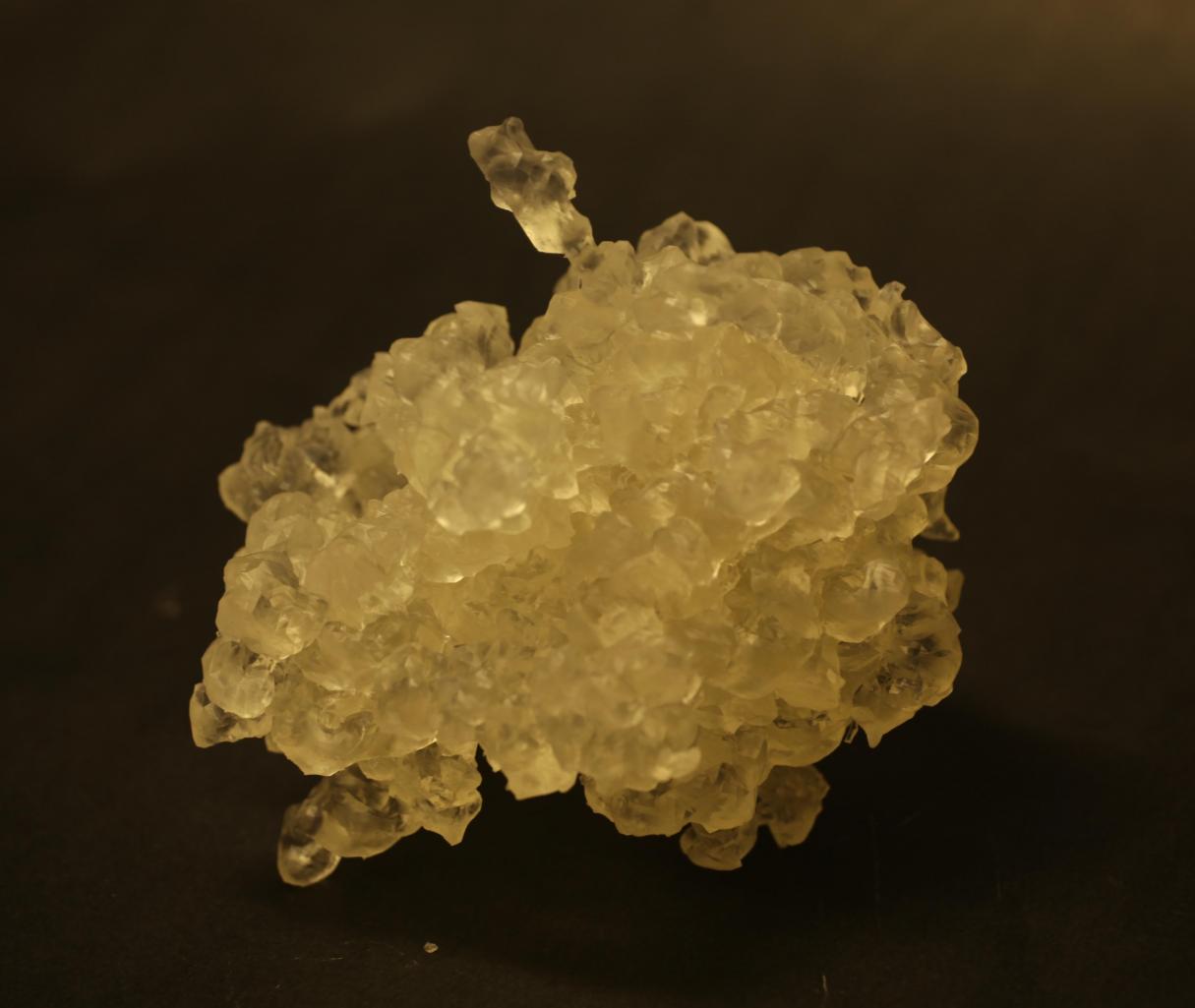

Ribosome

Ribosome

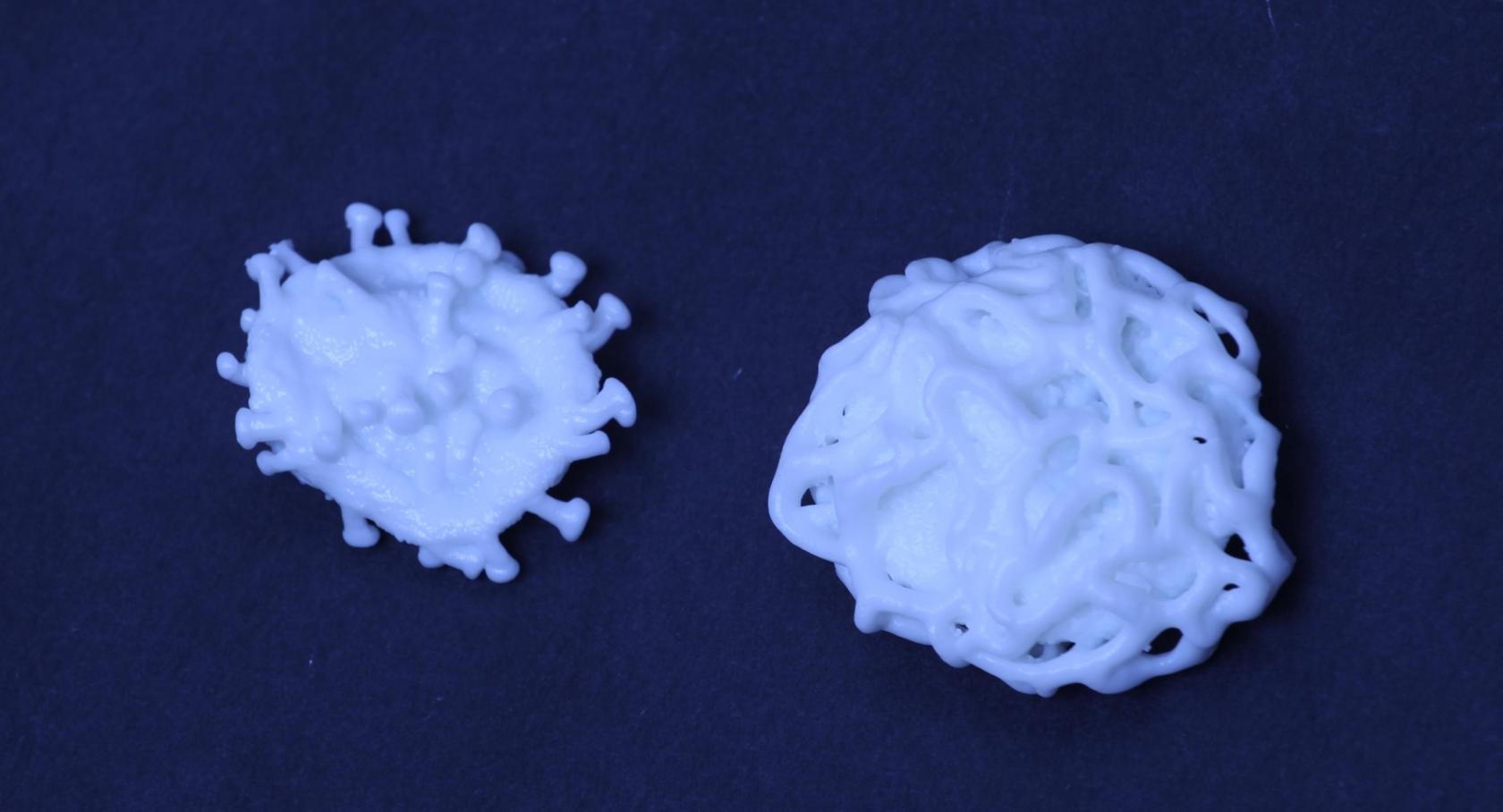

Pollen

Pollen

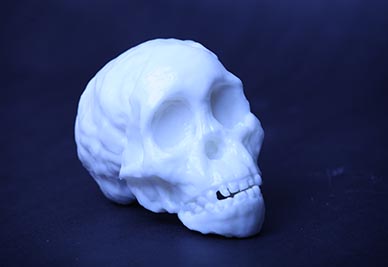

Fossil Skull

Fossil Skull

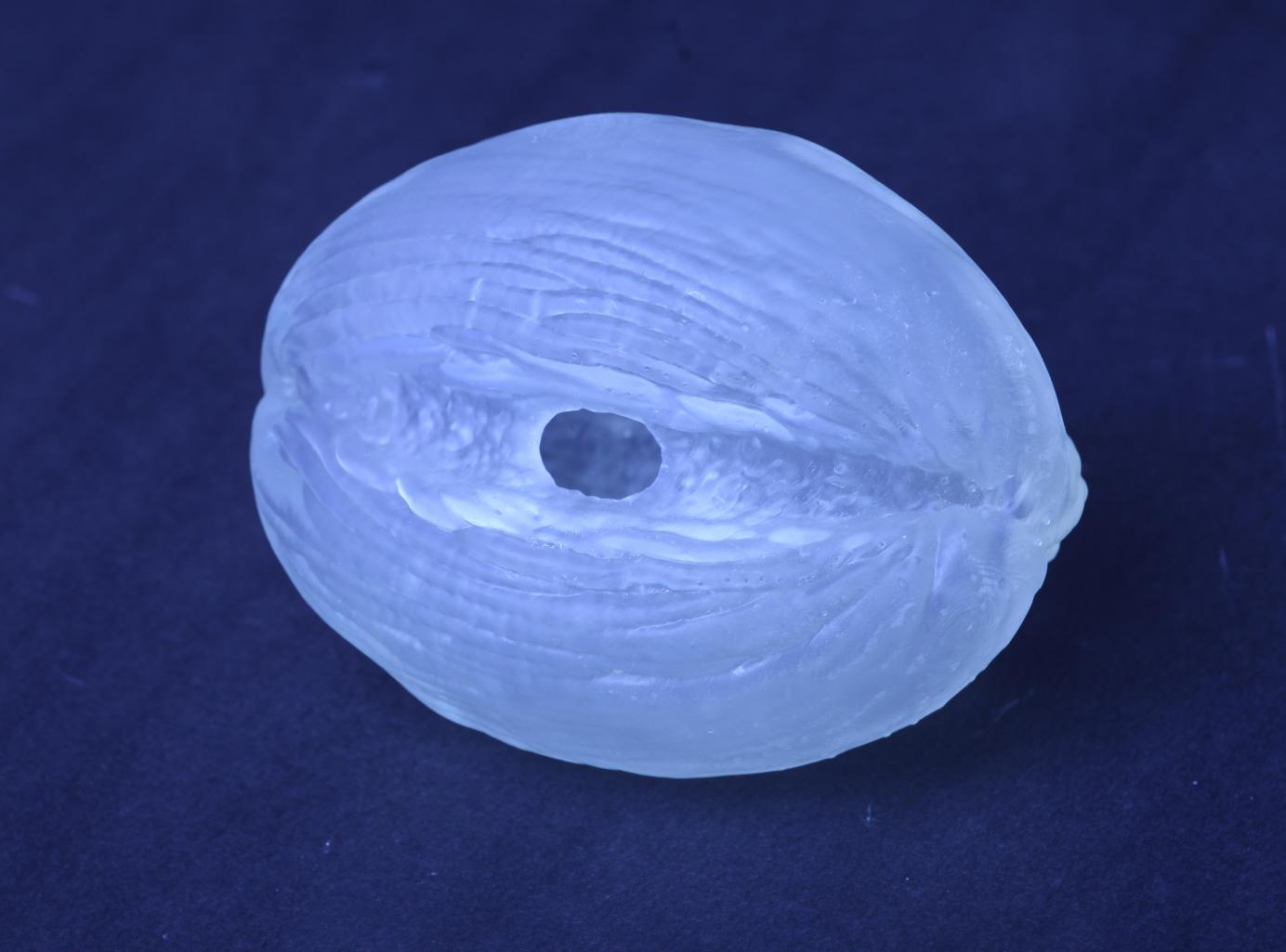

Fossil Pollen

Fossil Pollen

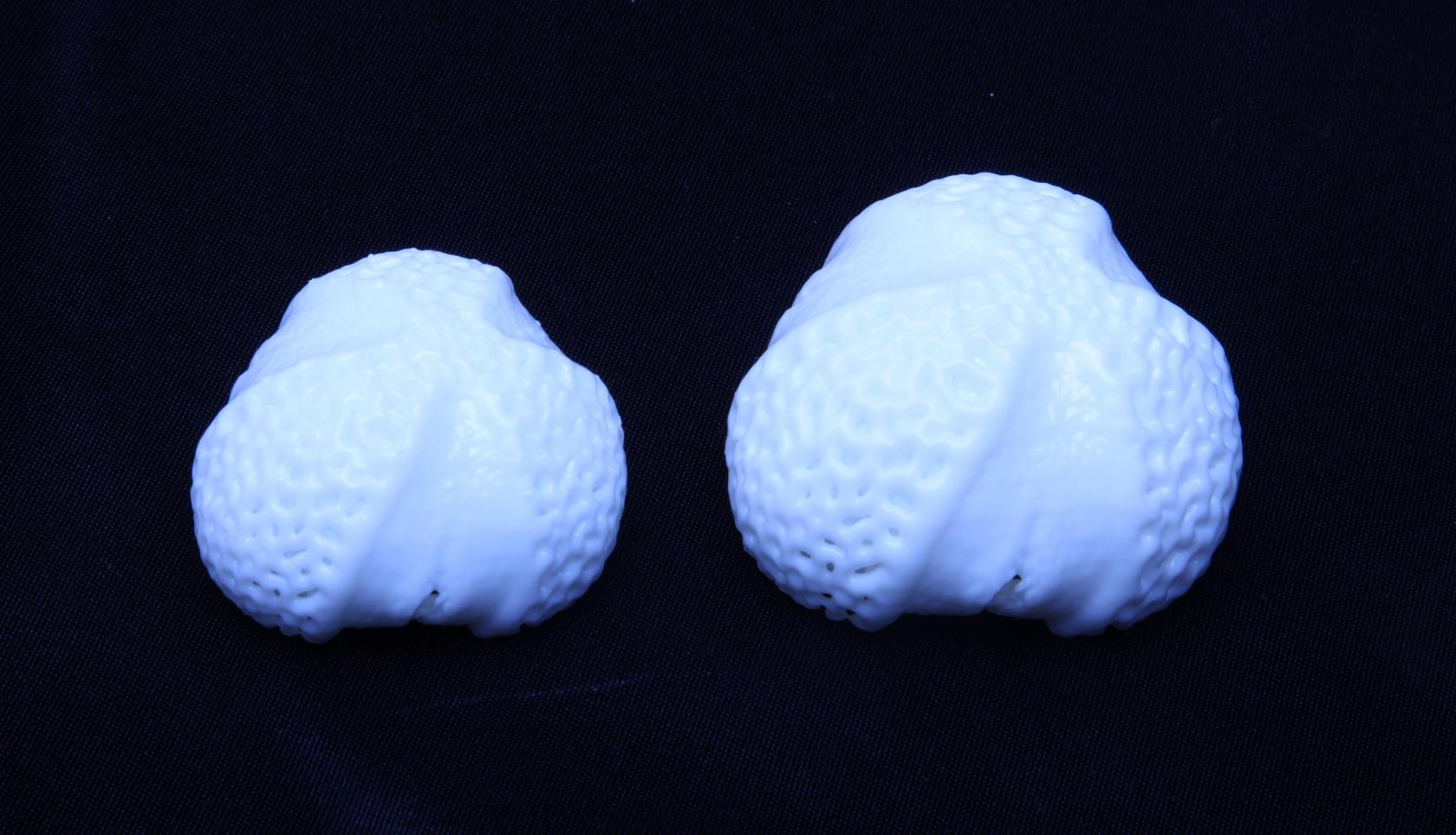

Pollen

Pollen



Requesting a Print:

  • File must be in .stl or .czi format
  • Maximum dimensions: 145cm X 145cm X 175cm
    • Specify approximate dimensions with your request
  • Specify color (black, white, clear)
  • Contact: Kate Janssen (217) 300-5904
  • Fees:
    • $20 Set-up
    • Resin:    $.19 per ml
    • Instrument:        $2.00 per hour build time

Instrument Information:

  • Manufacturer: FormLabs
  • Equipment Model: Form 2
  • Location: IGB 124
