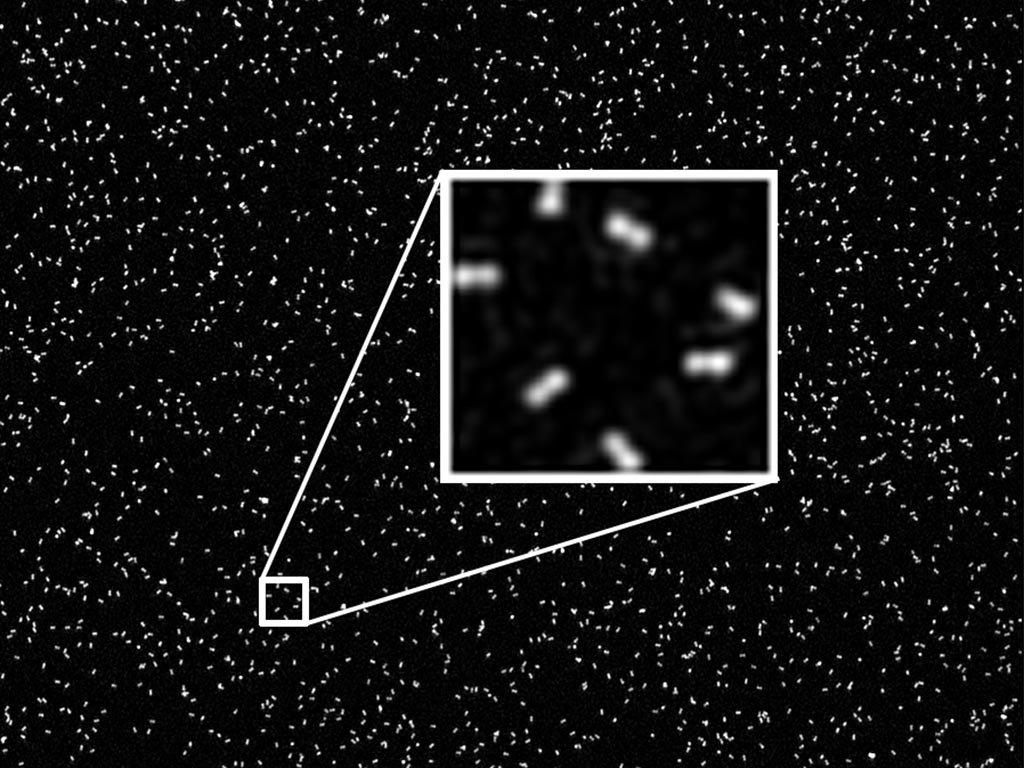

Superresolution image showing a resolution of 140 nm peak-to-peak resolved distance of a DNA Nanoruler. Image collected on SR-SIM Elyra Superresolution

Image showing gattaquant (gattaquant.com) resolution standard nanorulers of GATTA-SIM 140 DNA origami (Cat # SIM 140 YBY) resolved in SR-SIM system using 560 nm excitation. The users can use this standard slide to test the system performance before one could image their samples, providing a tool to calibrate the system before imaging and interpretation of results.

Gattaquant Ruler
