AxioScan.Z1

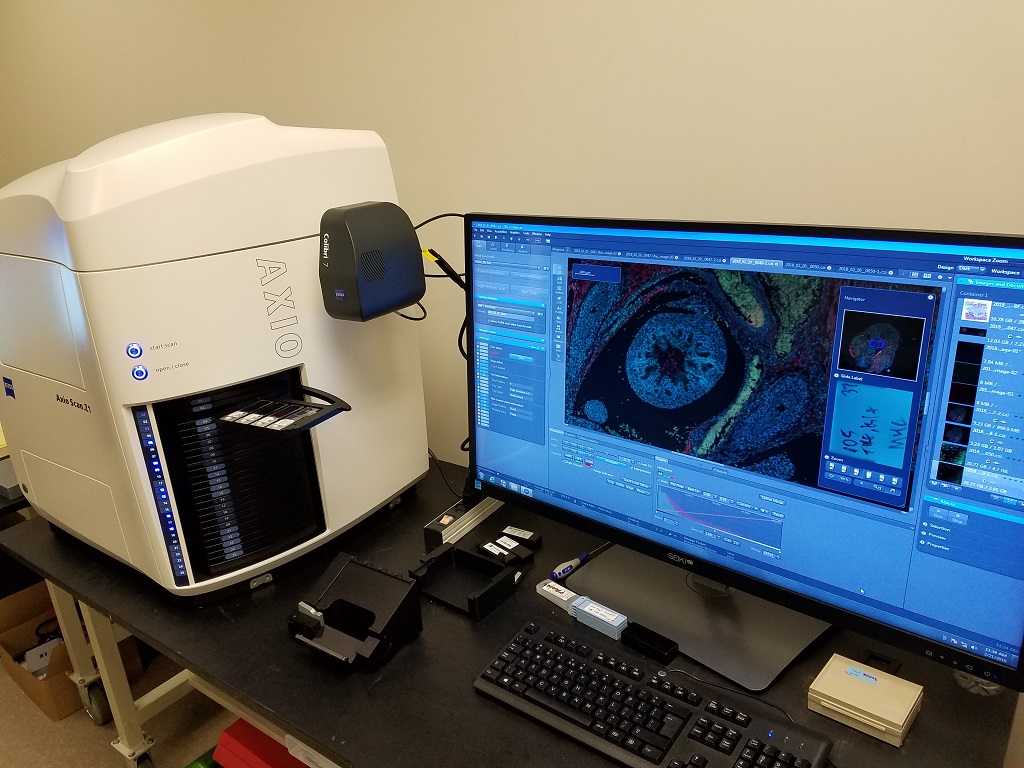

Zeiss AxioScan.Z1 Slide Scanner: an automated slide scanner for fluorescence, brightfield or polarization microscopy. A software wizard guides users through profile development for automated tissue detection, focusing, and scanning. The system can load up to 100 slides and image them using pre-configured profiles without supervision.
System Configuration
- Colibri 7 LED light source: 385 nm, 430 nm, 511 nm, 555 nm, 590 nm, 630 nm
- Objectives: 5x/0.25 10x/0.45, 20x/0.8, 40x/0.5 Pol and 50x/0.8 Pol
- Filter: GFP, DsRed, Cy5, DAPI/GFP/CY3/Cy5, and CFP/FP/mCherry
- Camera: Hamamatsu Orca Flash, AxioCam IC (CCD AxioCam IC Color camera) and Hitachi HV-F202SCL
- Modular trays for 26mm x 76mm (can scan up to 100) and 52mm x 76mm
- Software: Zen Blue
Information:
- Manufacturer: Zeiss
- Equipment Model: Axioscan
- Location: 121G, Carl R. Woese Institute for Genomic Biology
- Contact Person: Austin Cyphersmith (ajcypher@illinois.edu)
- Fees & Consumables: https://www.igb.illinois.edu/corefacilities/fees
- AxioScan.Z1 basic operation: https://www-app.igb.illinois.edu/core-docs/books/igb-core-training/page/axio-scan-z1
Sample Images
