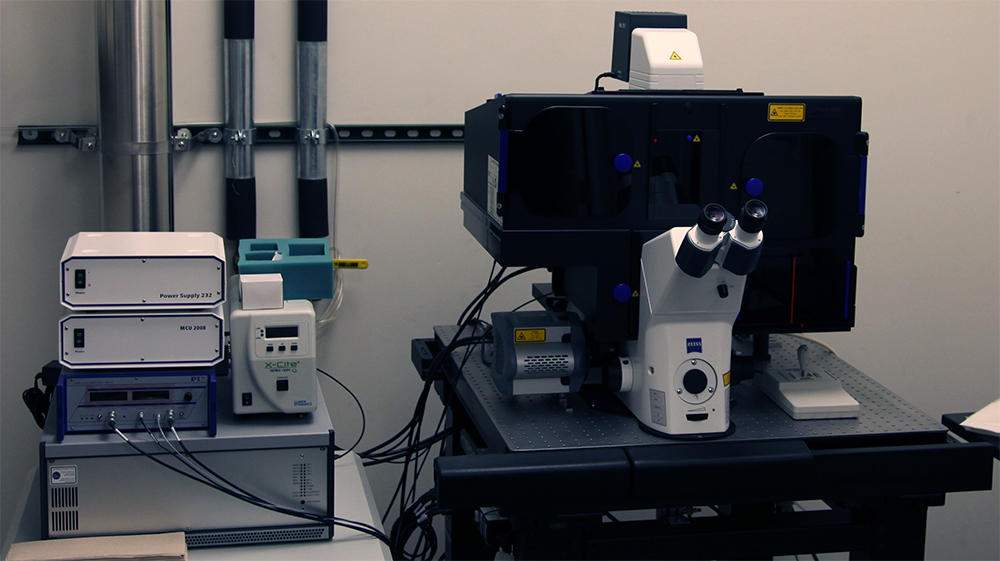

Structured illumination uses a spatially osilating illumination to shift the spatial frequencies recorded by the camera to higher frequencies.  This technique has twice the resolution of a confocal in X,Y, and Z. The Elyra system in the Core has 405nm, 488nm, 561nm, and 633nm lasers.

Image reconstruction can be run on Yellowstone in the Image analysis room.


Manufacturer: Zeiss

Equipment Model: Zeiss Elyra S1

Location: 121B, Carl R. Woese Institute for Genomic Biology

Contact Person: Austin Cyphersmith, 217-244-9654,

Fees & Consumables: See fees page
